DLP display wall solution

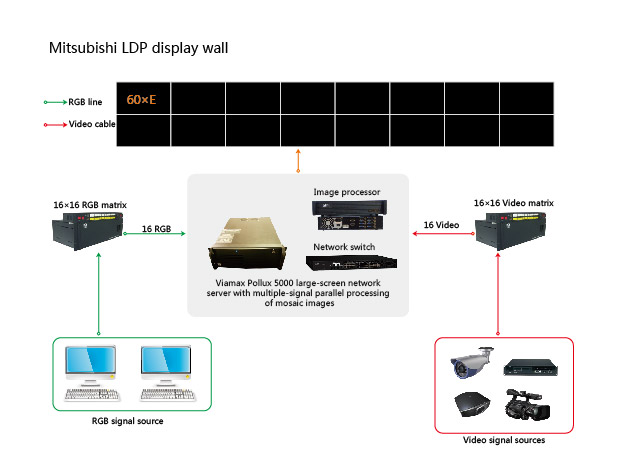

The 2x8 tiled display system consists of 16 Mitsubishi 60XE DLP display units, 1 Viamax Pollux 5000 large-screen network server with multiple-signal parallel processing of mosaic images, 1 16 x 16 RGB matrix, 1 16 x 16 video matrix, 8 sets of display unit base, etc.

RGB signal (16 ways)
RGB signal is connected to the input interface of RGB matrix and displays at the mosaic wall after being processed by the Viamax Pollux 5000 server. All the RGB signals can be mixed and overlaid with video signals.

Video signal (16 videos)
Video signal is connected to the input interface of video matrix and displays at the mosaic wall after being processed by the Viamax Pollux 5000 server.
